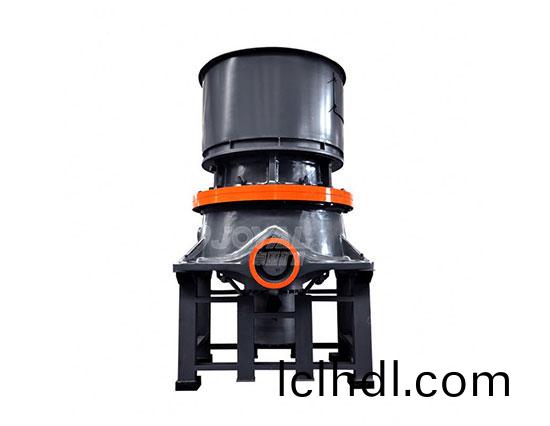

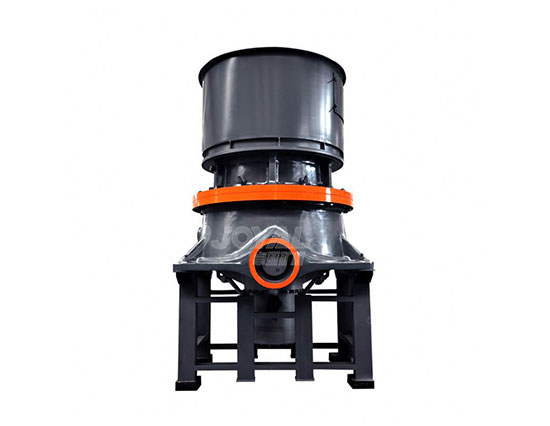

HH和HS单缸液压圆锥破碎机
产品简介：
HH和HS 系列单缸液压圆锥破碎机集机械，液压，电气，自动化，智能控制等技术于一体。(zheng)可以地应用于中碎，细碎以及超细碎等破碎作业。可的应用于金属与非金属矿，水泥厂，建筑，砂石，冶金等行业，适用于铁矿石，有色金属矿石，花岗岩，石灰岩，石英石，砂岩，鹅卵石等。
应用领域： 可的应用于金属与非金属矿，水泥厂，建筑，砂石，冶金等行业。
适用物料： 适用于铁矿石，有色金属矿石，花岗岩，石灰岩，石英石，砂岩，鹅卵石等。
工作原理
水平轴、偏心套、定锥、动锥、轴承等。配件采用铸造或锻造工艺，由高锰钢、高铬、高锰复合等耐磨材料制造而成。。
技术参数
| 型号Model |
腔型 Cavity |
粒度(mm) Feeding size (mm) |
排料口(CSS)对应产量(t/h) The capacity of Corresponding Discharge opening size (t/h) |
|||||||||||
| 5mm | 6mm | 7mm | 11mm | 12mm | 13mm | 15mm | 17mm | 18mm | 19mm | 22mm | 24mm | |||
|
CH100 90KW |
C粗 Coarse |
120 | 聽 | 聽 | 聽 | 聽 | 聽 | 65-70 | 70-85 | 75-100 | 75-105 | 80-110 | 85-120 | 90-100 |
|
M中 Medium |
105 | 聽 | 聽 | 聽 | 55-80 | 60-85 | 聽 | 65-90 | 65-95 | 70-100 | 75-100 | 聽 | 聽 | |
|
MF中细 Medium fine |
85 | 聽 | 聽 | 45-50 | 50-75 | 聽 | 55-80 | 60-85 | 聽 | 65-90 | 65-80 | 聽 | 聽 | |
|
EF特细 Extra fine |
32 | 35-40 | 40-55 | 40-60 | 45-70 | 55-75 | 聽 | 60-75 | 65 | 聽 | 聽 | 聽 | 聽 | |
|
型号 Model |
腔型 Cavity |
给料粒度(mm) Feeding size (mm) |
排料口(CSS)对应产量(t/h) The capacity of Corresponding Discharge opening size (t/h) |
||||||
| 20mm | 25mm | 30mm | 35mm | 40mm | 45mm | 聽 | |||
|
CS100 90Kw |
M标中 Medium |
170 | 85-90 | 105-145 | 125-175 | 145-200 | 165-215 | 聽 | 聽 |
|
型号 Model |
腔型 Cavity |
给料粒度 (mm) Feeding size (mm) |
排料口(CSS)对应产量(t/h) The capacity of Corresponding Discharge opening size (t/h) |
|||||||||
| 6mm | 8mm | 10mm | 13mm | 16mm | 19mm | 22mm | 25mm | 32mm | 38mm | |||
| 聽 |
EC特粗 Extra Coarse |
185 | 聽 | 聽 | 聽 | 69-108 | 75-150 | 80-161 | 86-171 | 91-182 | 104-208 | 115-208 |
| 聽 |
C粗 Coarse |
145 | 聽 | 聽 | 聽 | 66-131 | 71-142 | 76-152 | 81-162 | 86-173 | 98-197 | 109-150 |
|
CH430 132KW |
MC中粗 Medium Coarse |
115 | 聽 | 聽 | 57 | 62-140 | 67-151 | 72-162 | 77-173 | 82-184 | 93-145 | 聽 |
| 聽 |
M中 Medium |
90 | 聽 | 聽 | 64-84 | 69-131 | 75-142 | 80-152 | 86-162 | 91-154 | 104 | 聽 |
| 聽 |
MF中细 Medium fine |
75 | 聽 | 61 | 65-106 | 70-115 | 76-124 | 81-126 | 87-114 | 92 | 聽 | 聽 |
| 聽 |
F特 Fine |
50 | 48-78 | 51-83 | 54-88 | 59-96 | 63-103 | 68-105 | 72-95 | 77 | 聽 | 聽 |
| 聽 |
EF特细 Extra fine |
35 |
70-90 其中80%小于5mm-5.6mm 70-90 of them are smaller than 5mm to 5.6mm |
|||||||||
|
型号 Model |
腔型 Cavity |
给料粒度 (mm) Feeding size (mm) |
排料口(CSS)对应产量(t/h) The capacity of Corresponding Discharge opening size (t/h) |
|||||||||
| 8mm | 10mm | 13mm | 16mm | 19mm | 22mm | 25mm | 32mm | 38mm | 44mm | |||
|
CH440 220KW |
EC特粗 Extra Coarse |
215 | 聽 | 聽 | 聽 | 114-200 | 122-276 | 131-294 | 139-313 | 159-357 | 175-395 | 192-384 |
|
C粗 Coarse |
175 | 聽 | 聽 | 101 | 109-218 | 117-292 | 125-312 | 133-332 | 151-378 | 167-335 | 183-229 | |
|
MC中粗 Medium Coarse |
140 | 聽 | 聽 | 97-122 | 105-262 | 113-282 | 120-301 | 128-320 | 146-328 | 161-242 | 聽 | |
|
M中 Medium |
110 | 聽 | 聽 | 117-187 | 126-278 | 136-298 | 145-318 | 154-339 | 175-281 | 194 | 聽 | |
|
MF中细 Medium fine |
85 | 聽 | 114 | 124-227 | 134-245 | 144-263 | 153-281 | 163-299 | 186-248 | 聽 | 聽 | |
|
F特 Fine |
70 | 90-135 | 96-176 | 104-191 | 112-206 | 120-221 | 129-236 | 137-251 | 156-208 | 聽 | 聽 | |
|
EF特细 Extra fine |
38 |
100-120 其中80%小于6mm-7.5mm 100-120 of them are smaller than 6mm to 7.5mm |
||||||||||
|
型号 Model |
腔型 Cavity |
给料粒度 (mm) Feeding size (mm) |
排料口(CSS)对应产量(t/h) The capacity of Corresponding Discharge opening size (t/h) |
||||||||
| 13mm | 16mm | 19mm | 22mm | 25mm | 32mm | 38mm | 44mm | 51mm | |||
|
Ch660 315KW |
EC特粗 Extra Coarse |
270 | 聽 | 117 | 190-338 | 203-436 | 216-464 | 246-547 | 272-605 | 298-662 | 328-511 |
|
CX特粗 Super Coarse |
235 | 聽 | 174-194 | 187-374 | 200-488 | 212-519 | 242-592 | 268-654 | 293-521 | 323-359 | |
|
C粗 Coarse |
215 | 聽 | 171-190 | 184-367 | 196-480 | 209-510 | 238-582 | 263-643 | 288-512 | 317-353 | |
|
MC中粗 Medium Coarse |
175 | 聽 | 162-253 | 174-426 | 186-455 | 198-484 | 226-552 | 249-499 | 273-364 | 聽 | |
|
M中 Medium |
135 | 聽 | 197-295 | 211-440 | 226-470 | 240-500 | 274-502 | 302-403 | 聽 | 聽 | |
|
MF中细 Medium fine |
115 | 192 | 207-369 | 222-396 | 237-423 | 252-450 | 287-451 | 318-363 | 聽 | 聽 | |
|
F特 Fine |
90 | 195-304 | 210-328 | 225-352 | 241-376 | 256-400 | 292-401 | 323 | 聽 | 聽 | |
| 聽 |
EF特细 Extra fine |
65 | 211-293 | 227-316 | 244-298 | 261-290 | 聽 | 聽 | 聽 | 聽 | 聽 |
|
型号 Model |
腔型 Cavity |
给料粒度 (mm) Feeding size (mm) |
排料口(CSS)对应产量(t/h) The capacity of Corresponding Discharge opening size (t/h) |
||||||||||
| 19mm | 22mm | 25mm | 29mm | 32mm | 35mm | 38mm | 41mm | 44mm | 48mm | 51mm | |||
|
CS430 132KW |
EC特粗 Extra Coarse |
360 | 聽 | 聽 | 126 | 138-173 | 147-230 | 156-293 | 165-310 | 174-327 | 183-344 | 196-306 | 聽 |
|
C粗 Coarse |
300 | 聽 | 108 | 116-145 | 127-199 | 135-254 | 144-270 | 152-285 | 161-301 | 196-264 | 108 | 聽 | |
|
MC中粗 Medium Coarse |
235 | 91 | 98-123 | 106-166 | 116-218 | 124-232 | 131-246 | 139-261 | 147-275 | 154-241 | 165 | 聽 | |
|
型号 Model |
腔型 Cavity |
给料粒度 (mm) Feeding size (mm) |
排料口(CSS)对应产量(t/h) The capacity of Corresponding Discharge opening size (t/h) |
|||||||||
| 25mm | 29mm | 32mm | 35mm | 38mm | 41mm | 44mm | 48mm | 51mm | 54mm | |||
| 聽 |
EC特粗 Extra Coarse |
450 | 聽 | 聽 | 聽 | 267 | 282-353 | 298-446 | 313-563 | 334-601 | 390-524 | 365-456 |
|
CS440 220KW |
C粗 Coarse |
400 | 聽 | 225 | 239-299 | 254-381 | 269-484 | 284-511 | 298-448 | 聽 | 333 | 聽 |
|
MC中粗 Medium Coarse |
300 | 195 | 214-267 | 228-342 | 242-435 | 256-461 | 270-486 | 284-426 | 303-378 | 317 | 聽 | |
|
型号 Model |
腔型 Cavity |
给料粒度 (mm) Feeding size (mm) |
排料口(CSS)对应产量(t/h) The capacity of Corresponding Discharge opening size (t/h) |
||||||||||
| 38mm | 41mm | 44mm | 48mm | 51mm | 54mm | 60mm | 64mm | 70mm | 76mm | 83mm | |||
|
CS660 315KW |
EC特粗 SuperCoarse |
560 | 聽 | 349 | 368-460 | 392-588 | 410-718 | 428-856 | 465-529 | 489-978 | 525-1050 | 562-983 | 604 |
|
C粗 Coarse |
500 | 318 | 336-420 | 353-618 | 376-753 | 394-788 | 411-823 | 446-892 | 469-822 | 504-631 | 聽 | 聽 | |
